不同的用途与间介：/Purpose and introduction

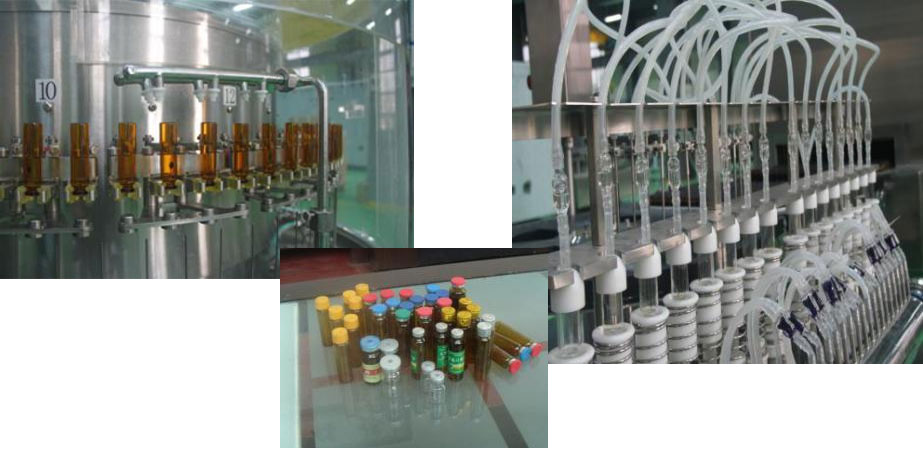

原浆、油类方式液洗烘灌轧协同线由卧式彩超波洗瓶机、所谓的隧道式热气 重复灭菌方法方法真空烘箱、原浆、油类方式液装罐设备轧盖机等组建，适宜于 5-30ml 等有差异规 格原浆、油类方式液瓶的种植。可来完成对医药种植中安瓿瓶淋水、彩超波清洁、冲水、充 气、烘干机灭菌方法方法、闭式冷却塔、装罐设备、轧盖等工艺设计环节的协同行驶。Oral liquid washing drying filling and rolling line by the vertical ultrasonic bottle-washing machine, tunnel sterilization oven hot wind cycle, oral liquid filling and other components of the rolling machine, suitable for 5-30 ml different gauge, etc Oral liquid bottle production. Can be done for ampoule bottle pour water in drug production, ultrasonic cleaning, flushing, filling gas, drying sterilization, cooling, filling and rolling cover joint operation of the process steps.

特别:/characteristic

◆洗瓶机选用自动化设备手夹瓶，使用四种技术参数的玻璃瓶；Bottle washer adopts manipulator clamp bottle, is suitable for a variety of specifications of the bottle;◆洗瓶分为水汽喷针循环往复追踪定位嵌入方案，进行维护清洁感觉好，节约资源能源系统。并设立针架防运动平衡装置，改善喷针嵌入小瓶的明确度，减掉断针这种现象再次发生；Reciprocating mixer washing bottle with water spray needle track insert way, cleaning effect is good, save energy. And is equipped with needle shake device, improve the accuracy of injection needle inserted into the bottle, reduce breakage phenomenon;◆洗瓶整水蒸气管道、喷针可以单独离婚，以免 了交叉性水污染，完全符合GMP标准化需要；Mixer washing bottle the water pipe, injection needles completely separate, to avoid the cross contamination, in line with the GMP requirements;◆洗瓶机进瓶丝杆前还可以加装缓冲器块，有护理丝杆，缩减碎瓶角色Pieces into the bottle inside the screw before adding buffer block, protect the screw, reduce broken bottles◆洗瓶机出瓶采取整体结构入口同样带，连接方式拨块输料内服液，运动增强可靠的In pieces out of the bottle inside the whole import synchronous belt, the connection piece of conveying liquid, stable and reliable running◆恒温干燥箱通过红外线加熱管，不锈钢材质的加熱管单层加熱温差平滑性好；Oven using infrared heating tube, stainless steel heating tube double heating temperature uniformity is good;◆灌装线轧盖机可选装配卫浴陶瓷泵、不锈钢材质的泵；In pieces filling rolling machine optional ceramic pump, stainless steel pump;◆灌装设备无瓶止灌，无瓶不轧盖工作。Pieces filling without bottle filling, no bottle no rolling function.◆整线按照PLC总掌控、交流伺服管控器、触屏式屏掌控新技术，工作不稳定性靠得住性。触屏式屏可显现各单机联机的工作情况，各掌控点的水位、空气压力、压力、溫度等显现，各开关按钮情况和告警显现，告警自我认知物理诊断和告警研究分析及是排除具体方法。使整体产出加工时候达成电脑自动掌控，联线含有三机测控稳定平衡系统设计，保护产出加工匀衡靠得住性。The whole line adopts PLC control, inverter, touch screen control technology, stable and reliable running. Touch screen can display the running state of each units, each control point of the water pressure, air pressure, air pressure, temperature, etc, according to the switch state and fault display, fault self-diagnosis and fault analysis and elimination method. The whole production process to achieve automatic control, on-line has the compressors control balancing device, ensure production is balanced.要根据客人的须要，还可供配搭：According to the needs of customers, but also available for selection:◆PLC、施耐德开关、西门子、台达等企业把控好软件系统；Pieces of Siemens, schneider, mitsubishi, Taiwan brands such as control system;◆水、气负荷、温度及高周波波承载力、尘埃什么意思阿尔法粒子、风量高清在线查重、报警灯、记下、印刷操作系统。Pieces of water, gas pressure, water temperature and the intensity of ultrasonic, dust particles, wind speed on-line detection, alarm, record and print system.◆ORABS、CRABS、无菌操作隔离防晒器系统。Mixer ORABS, CRABS, aseptic isolator system.

技巧参数指标：technical parameters

支持尺寸Cutting   dimension(ml)	5-25
生产能力production capacity(pcs/min)	350
装灌精度等级Filling accuracy(%)	≤ ± 2.5
灌装设备头数Fillingheads	16
轧盖头数Number of rolling   curtain	单刀20头
轧盖达标率率Rolling cover   percent of pass(%)	≥ 99
总重量total weight(kg)	7500
外形尺寸boundary dimension(mm)	9920 × 2003 × 2150
