主要用途与详细资料：Purpose and introduction

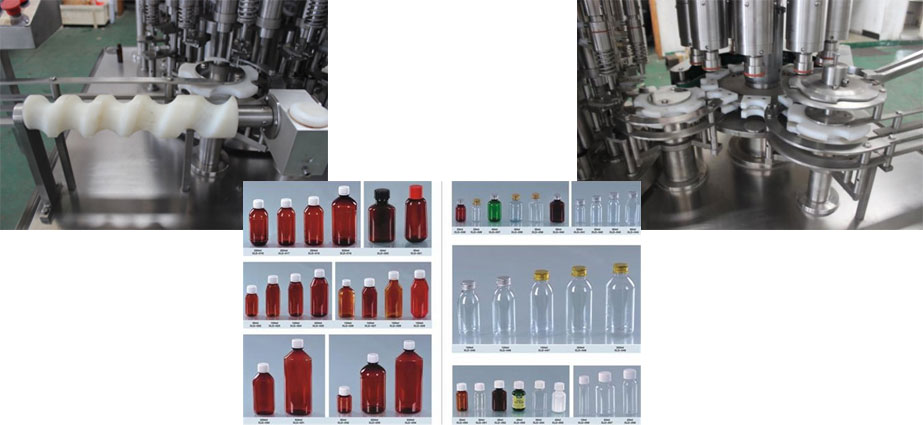

该机械适宜于对30-500ML款型的玻璃制瓶、朔料材质瓶的装灌密封。利用往来账户联系式柱塞做装灌，电磁振动器震荡送盖，可能轧盖(铝合金式)或旋盖(朔料材质盖)密封，可能和左右的生产的制造制作工艺机械相联构造生产的制造线，虽然可能采购百级层流罩。This machine is suitable for the filling and sealing of 30-500ml series glass bottles and plastic bottles. The reciprocating between piston filling, electromagnetic oscillation send cover, cover (metal) can be rolled or screw cap (plastic cap) sealing. Can produce and the produce of the process equipment before and after connecting line. In addition, the laminar flow hood is available for selection.

作用：characteristic

装量最准，杜尽渗漏。缺瓶不罐装。 变頻调速器。 自觉体现 计数法作用与功效。 空机均按GMP追求来设计。The filling amount is accurate, as Du drip. Lack of bottle does not fill. Frequency control of motor speed. Active display count. The machine according to the GMP request design.

技术工艺数据/technical parameters：

型号 model	NQGX30-500
实用技术参数Cutting dimension	30-500ml
主产力量Production capacity	80-200瓶/分（罐/分）80-200 bottles/min (cans/min)
装灌gps精度 Filling accuracy	≤±1%
电源开关 Power	380V/50Hz
旋（轧）盖率Spin (rolling) cover rate	≥99%
功率power	3.0 kw
机戒净重量 Machine weight	1500 kg
外形尺寸 boundary dimension	3000*1100*1700mm
